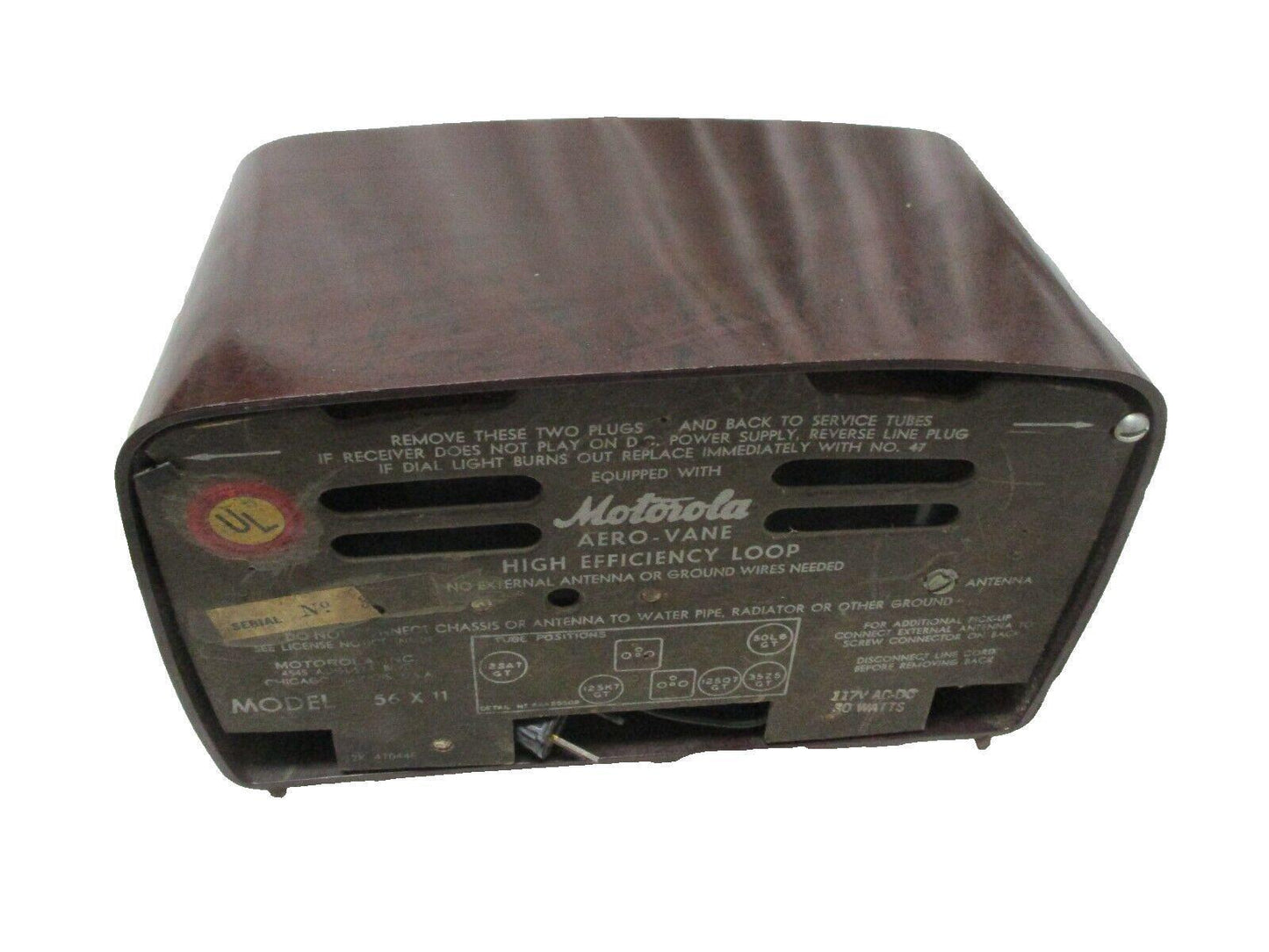

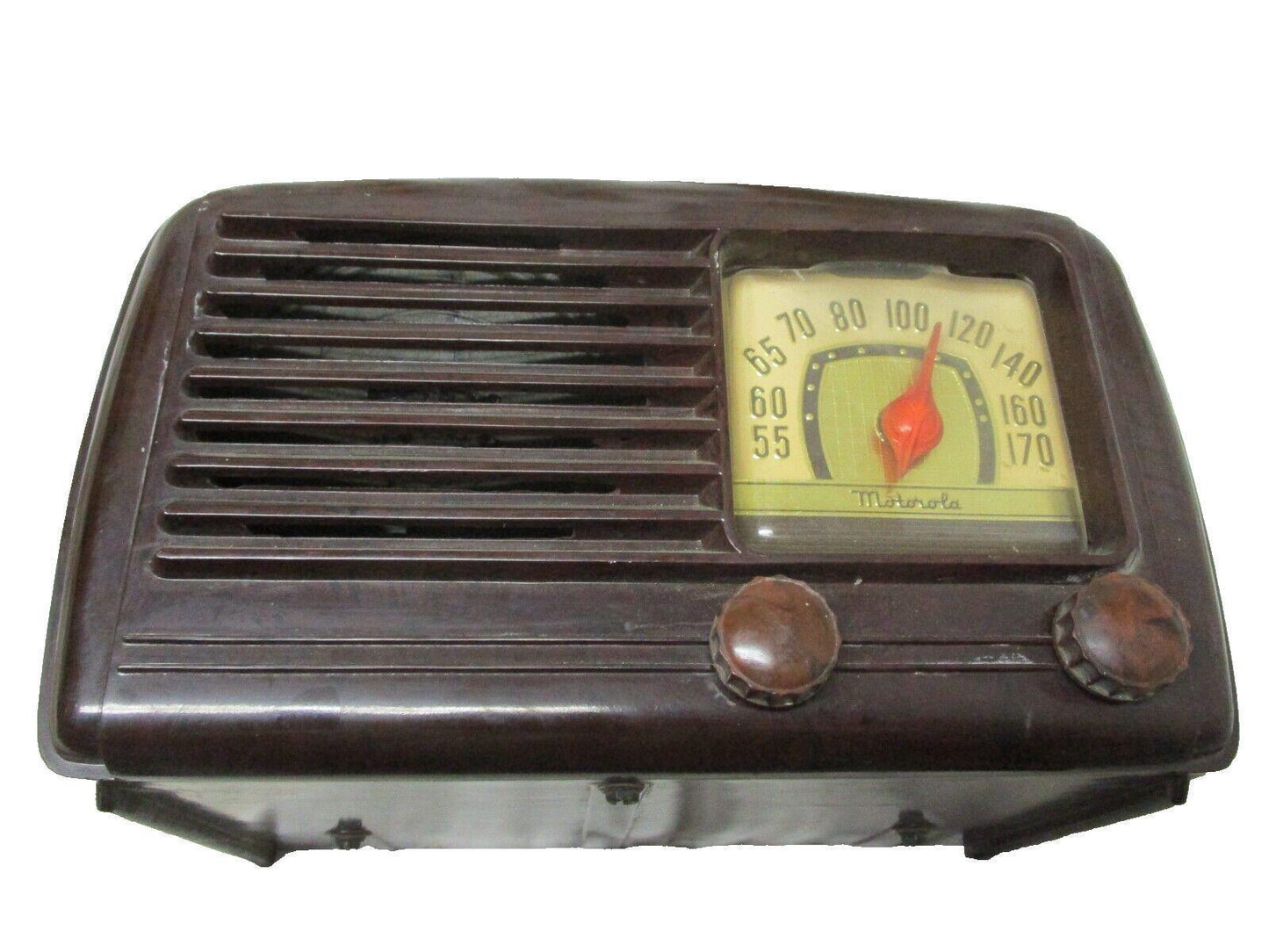

Vintage 1947 Motorola Radio Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

This vintage/antique radio will be for parts or repair with no returns. "100% on original and was never worked on" (In very good condition).

56X11 Ch= HS-94

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

* Country
* United States of America (USA)

* Manufacturer / Brand
* Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

* Year
* 1947

* Category
* Broadcast Receiver - or past WW2 Tuner

* Radiomuseum.org ID
* 48921

* Number of Tubes
* 5

* Valves / Tubes
* 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT

* Main principle
* Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

* Tuned circuits
* 6 AM circuit(s)

* Wave bands
* Broadcast only (MW).

* Power type and voltage

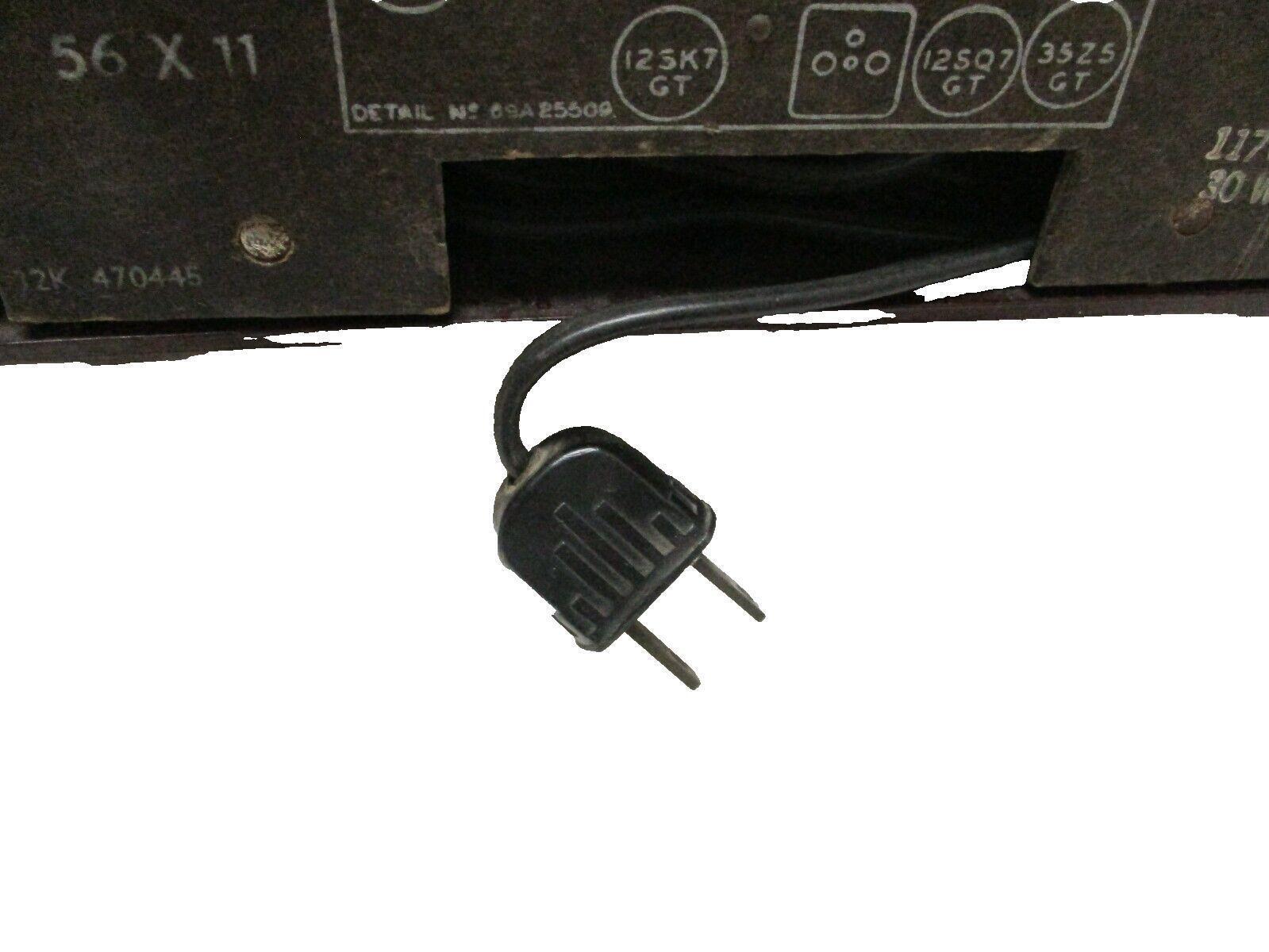

* AC/DC-set / 110 - 120 Volt

* Loudspeaker
* Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch 10.2 cm

* Material
* Plastics (no bakelite or catalin)

* from Radiomuseum.org
* Model: 56X11 Ch= HS-94 - Motorola Inc. ex Galvin Mfg.Co

* Shape
* Tablemodel without push buttons, Mantel/Midget/Compact up to 14

* Notes
* Color=Walnut.

* External source of data
* Ernst Erb

* Source of data
* Collector's Guide to Antique Radios 4. Edition

* Circuit diagram reference
* Rider's Perpetual, Volume 17 1948 and before

* Mentioned in
* Guide to Old Radios

* Literature/Schematics (1)
* Photofact Folder, Howard W. SAMS (Set 28, Folder 4718-24)
